Spring Boot REST 기반 파일업로드 본문

SpringFrameWork/SpringBoot

Spring Boot REST 기반 파일업로드

계단 2019. 9. 30. 13:09

# Spring Boot 기본 환경설정



- Spring Boot 2.1.8 / Maven / war / JPA / Mysql /





일단 기본 설정으로 Tymeleaf 와 Spring Web, DevTools 를 체크해준다.

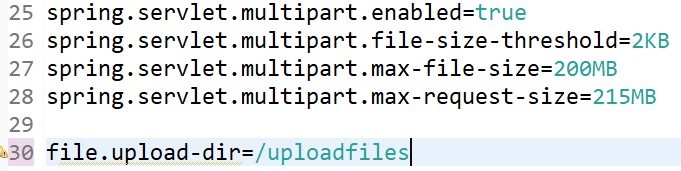

그리고 파일 업로드를 위해 application.properties 에 설정을 추가해준다.



여기서 file.upload-dir 이 property에 등록이 안되어 있다.. !! (이부분이 중요)

추후 등록해주겠다.



그럼 이제 제일 중요한 property 등록을 먼저 하겠다.



우선 패키지 파일트리를 그림과 같이 구성한다.

그리고 property 부터 등록을 하겠다.



import org.springframework.boot.context.properties.ConfigurationProperties;

@ConfigurationProperties(prefix = "file")
public class FileStorageProperties {
    private String uploadDir;

    public String getUploadDir() {
        return uploadDir;
    }

    public void setUploadDir(String uploadDir) {
        this.uploadDir = uploadDir;
    }
}

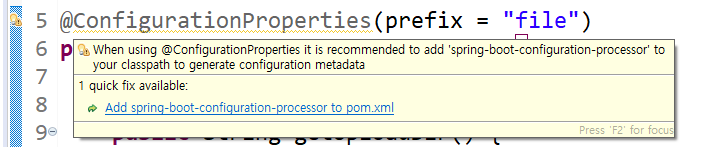

이 때 중요한 부분이 이부분

이 부분에서 Add spring-boot-configuration-processor to pom.xml 을 클릭해서

등록을 해줘야

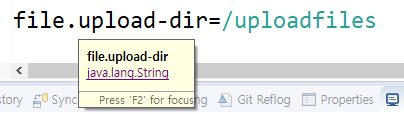

이렇게 등록이 된다.. 이게 안떠서 거의 4시간을 찾아 보기만 하다가,

노가다로 알아냈다... property 등록.. 일단 이 알람이 떠야 한다!!



그리고 Spring boot Application 에 Bean 으로 등록을 해줘야 한다.



# Spring Boot Application



@SpringBootApplication
@EnableConfigurationProperties({
	FileStorageProperties.class
})
public class CatchreviewVo4Application {

	public static void main(String[] args) {
		SpringApplication.run(CatchreviewVo4Application.class, args);
	}

}




# exception 패키지의 FileStorageException

public class FileStorageException extends RuntimeException {
    public FileStorageException(String message) {
        super(message);
    }

    public FileStorageException(String message, Throwable cause) {
        super(message, cause);
    }
}



# exception 패키지의 MyFileNotFoundException

@ResponseStatus(HttpStatus.NOT_FOUND)
public class MyFileNotFoundException extends RuntimeException {
    public MyFileNotFoundException(String message) {
        super(message);
    }

    public MyFileNotFoundException(String message, Throwable cause) {
        super(message, cause);
    }
}

# service 패키지의 FileStorageService



@Service
public class FileStorageService {

    private final Path fileStorageLocation;

    @Autowired
    public FileStorageService(FileStorageProperties fileStorageProperties) {
        this.fileStorageLocation = Paths.get(fileStorageProperties.getUploadDir())
                .toAbsolutePath().normalize();

        try {
            Files.createDirectories(this.fileStorageLocation);
        } catch (Exception ex) {
            throw new FileStorageException("Could not create the directory
  																	where the uploaded files will be stored.", ex);
        }
    }

    public String storeFile(MultipartFile file) {
        // Normalize file name
        String fileName = StringUtils.cleanPath(file.getOriginalFilename());

        try {
            // Check if the file's name contains invalid characters
            if(fileName.contains("..")) {
                throw new FileStorageException("Sorry! Filename contains invalid path sequence " + fileName);
            }

            // Copy file to the target location (Replacing existing file with the same name)
            Path targetLocation = this.fileStorageLocation.resolve(fileName);
            Files.copy(file.getInputStream(), targetLocation, StandardCopyOption.REPLACE_EXISTING);

            return fileName;
        } catch (IOException ex) {
            throw new FileStorageException("Could not store file " + fileName + ". Please try again!", ex);
        }
    }

    public Resource loadFileAsResource(String fileName) {
        try {
            Path filePath = this.fileStorageLocation.resolve(fileName).normalize();
            Resource resource = new UrlResource(filePath.toUri());
            if(resource.exists()) {
                return resource;
            } else {
                throw new MyFileNotFoundException("File not found " + fileName);
            }
        } catch (MalformedURLException ex) {
            throw new MyFileNotFoundException("File not found " + fileName, ex);
        }
    }
}



# domain 패키지의 UploadFileResponse

public class UploadFileResponse {
    private String fileName;
    private String fileDownloadUri;
    private String fileType;
    private long size;

    public UploadFileResponse(String fileName, String fileDownloadUri,
      										String fileType, long size) {
        this.fileName = fileName;
        this.fileDownloadUri = fileDownloadUri;
        this.fileType = fileType;
        this.size = size;
    }

    public String getFileName() {
        return fileName;
    }

    public void setFileName(String fileName) {
        this.fileName = fileName;
    }

    public String getFileDownloadUri() {
        return fileDownloadUri;
    }

    public void setFileDownloadUri(String fileDownloadUri) {
        this.fileDownloadUri = fileDownloadUri;
    }

    public String getFileType() {
        return fileType;
    }

    public void setFileType(String fileType) {
        this.fileType = fileType;
    }

    public long getSize() {
        return size;
    }

    public void setSize(long size) {
        this.size = size;
    }
}

# controller 패키지의 FileController

@Log
@RestController
public class FileController {

    private static final Logger logger = LoggerFactory.getLogger(FileController.class);

    @Autowired
    private FileStorageService fileStorageService;

    @PostMapping("/uploadFile")
    public UploadFileResponse uploadFile(@RequestParam("file") MultipartFile file) {
    	System.out.println("---------------uploadFile");
    	log.info("uploadFile");

        String fileName = fileStorageService.storeFile(file);

        String fileDownloadUri = ServletUriComponentsBuilder.fromCurrentContextPath()
                .path("/downloadFile/")
                .path(fileName)
                .toUriString();

        return new UploadFileResponse(fileName, fileDownloadUri,
                file.getContentType(), file.getSize());
    }

    @PostMapping("/uploadMultipleFiles")
    public List<UploadFileResponse> uploadMultipleFiles(
  										@RequestParam("files") MultipartFile[] files) {
        return Arrays.asList(files)
                .stream()
                .map(file -> uploadFile(file))
                .collect(Collectors.toList());
    }

    @GetMapping("/downloadFile/{fileName:.+}")
    public ResponseEntity<Resource> downloadFile(@PathVariable String fileName,
  															HttpServletRequest request) {
        // Load file as Resource
        Resource resource = fileStorageService.loadFileAsResource(fileName);

        // Try to determine file's content type
        String contentType = null;
        try {
            contentType = request.getServletContext().getMimeType(resource.getFile()
  																			.getAbsolutePath());
        } catch (IOException ex) {
            logger.info("Could not determine file type.");
        }

        // Fallback to the default content type if type could not be determined
        if(contentType == null) {
            contentType = "application/octet-stream";
        }

        return ResponseEntity.ok()
                .contentType(MediaType.parseMediaType(contentType))
                .header(HttpHeaders.CONTENT_DISPOSITION, "attachment; filename=\""
  																		+ resource.getFilename() + "\"")
                .body(resource);
    }

    @RequestMapping("/uploadFile")
	public void forGues() {
		log.info("file==========================");
	}

}

이후에 스프링 부트 어플리케이션을 실행시켜서 제대로 부팅 되는지 확인해보자!

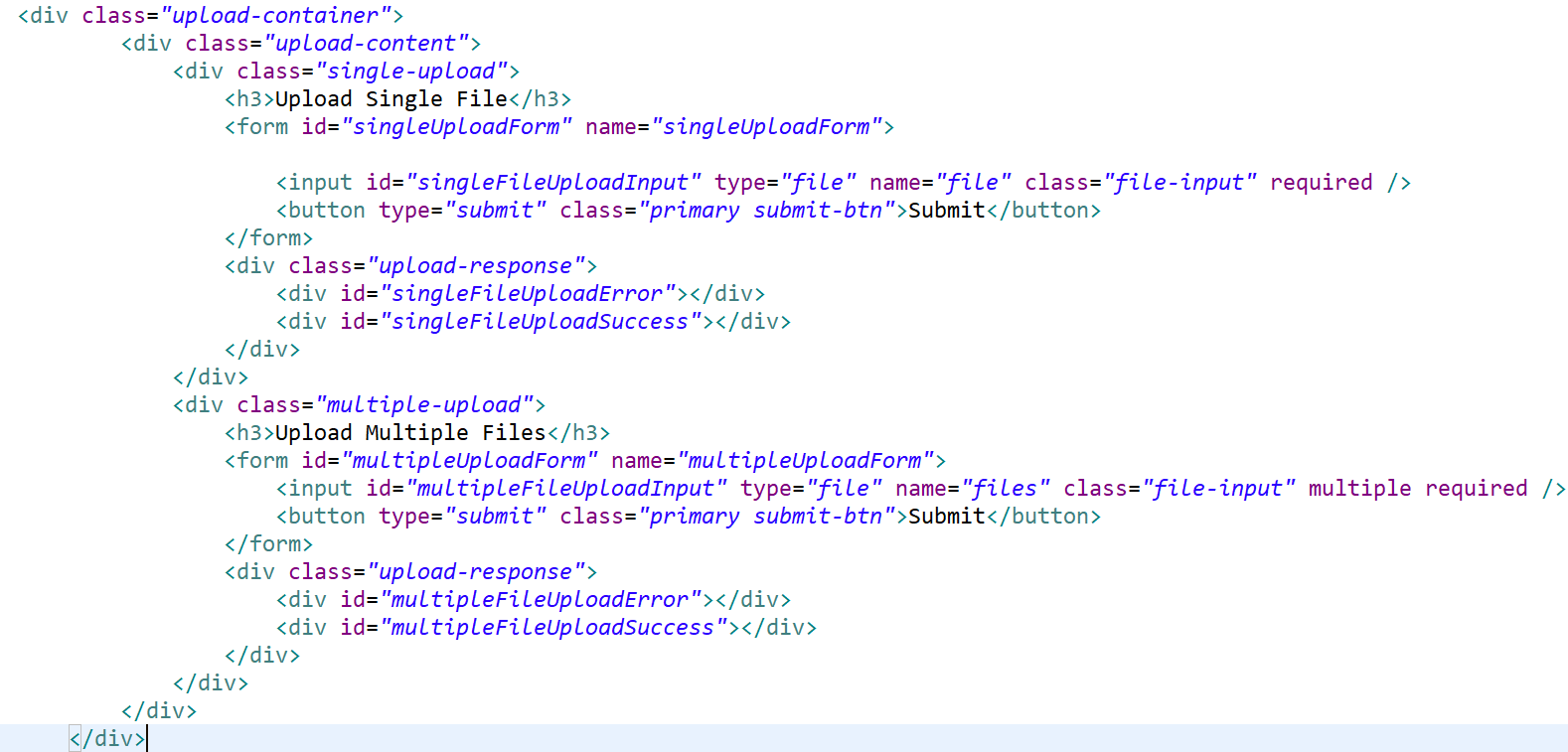

# html 부분





# script

'use strict';

var singleUploadForm = document.querySelector('#singleUploadForm');
var singleFileUploadInput = document.querySelector('#singleFileUploadInput');
var singleFileUploadError = document.querySelector('#singleFileUploadError');
var singleFileUploadSuccess = document.querySelector('#singleFileUploadSuccess');

var multipleUploadForm = document.querySelector('#multipleUploadForm');
var multipleFileUploadInput = document.querySelector('#multipleFileUploadInput');
var multipleFileUploadError = document.querySelector('#multipleFileUploadError');
var multipleFileUploadSuccess = document.querySelector('#multipleFileUploadSuccess');

function uploadSingleFile(file) {
    var formData = new FormData();
    formData.append("file", file);

    var xhr = new XMLHttpRequest();
    xhr.open("POST", "/uploadFile", true);


    xhr.onload = function() {
        console.log(xhr.responseText);
        var response = JSON.parse(xhr.responseText);

        alert(xhr.responseText);
        if(xhr.status == 200) {
        	alert('성공?');
            singleFileUploadError.style.display = "none";
            singleFileUploadSuccess.innerHTML = "<p>File Uploaded Successfully.</p><p>DownloadUrl : <a href='" + response.fileDownloadUri + "' target='_blank'>" + response.fileDownloadUri + "</a></p>";
            singleFileUploadSuccess.style.display = "block";
        } else {
        	alert('실패?');
            singleFileUploadSuccess.style.display = "none";
            singleFileUploadError.innerHTML = (response && response.message) || "Some Error Occurred";
        }
    }


    xhr.send(formData);
}

function uploadMultipleFiles(files) {
    var formData = new FormData();
    for(var index = 0; index < files.length; index++) {
        formData.append("files", files[index]);
    }

    var xhr = new XMLHttpRequest();
    xhr.open("POST", "/uploadMultipleFiles");

    xhr.onload = function() {
        console.log(xhr.responseText);
        var response = JSON.parse(xhr.responseText);
        if(xhr.status == 200) {
            multipleFileUploadError.style.display = "none";
            var content = "<p>All Files Uploaded Successfully</p>";
            for(var i = 0; i < response.length; i++) {
                content += "<p>DownloadUrl : <a href='" + response[i].fileDownloadUri + "' target='_blank'>" + response[i].fileDownloadUri + "</a></p>";
            }
            multipleFileUploadSuccess.innerHTML = content;
            multipleFileUploadSuccess.style.display = "block";
        } else {
            multipleFileUploadSuccess.style.display = "none";
            multipleFileUploadError.innerHTML = (response && response.message) || "Some Error Occurred";
        }
    }

    xhr.send(formData);
}

singleUploadForm.addEventListener('submit', function(event){
    var files = singleFileUploadInput.files;
    alert(files.length);
    if(files.length === 0) {
        singleFileUploadError.innerHTML = "Please select a file";
        singleFileUploadError.style.display = "block";
    }
    uploadSingleFile(files[0]);
    event.preventDefault();
}, true);


multipleUploadForm.addEventListener('submit', function(event){
    var files = multipleFileUploadInput.files;
    if(files.length === 0) {
        multipleFileUploadError.innerHTML = "Please select at least one file";
        multipleFileUploadError.style.display = "block";
    }
    uploadMultipleFiles(files);
    event.preventDefault();
}, true);




되네.....
